RA105.1025.2.2 TI25
Plaquette
Numéro d'article RA105102522TI25

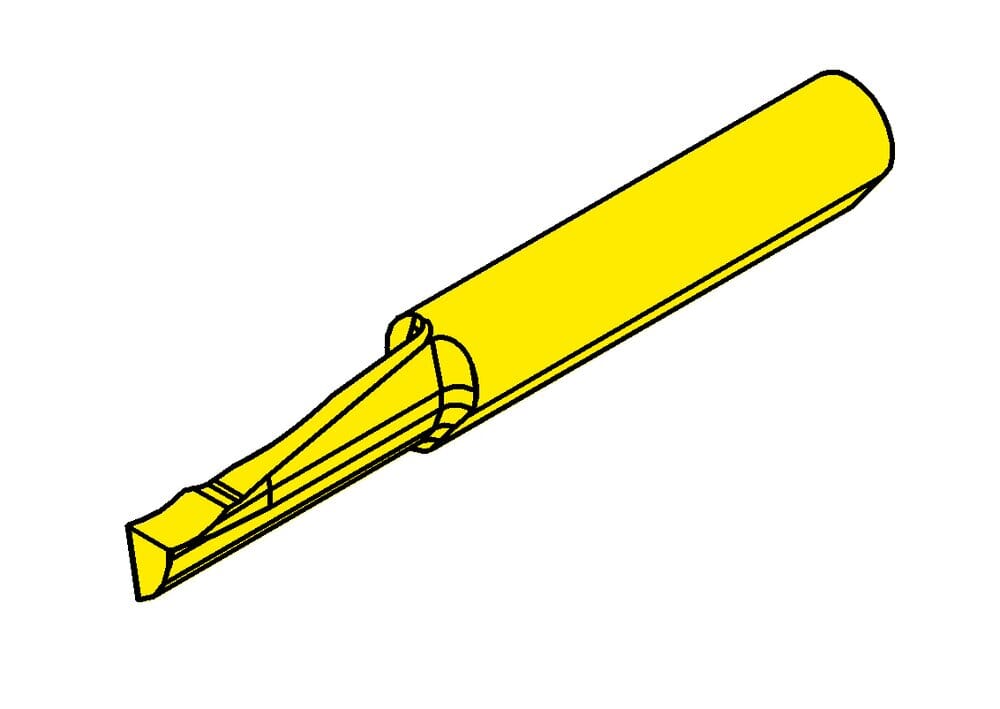

HORN Plaquette RA105.1025.2.2 TI25 pour Tournage
Cote de réglage du centre de l'arête (f)
1.6 mm
Profondeur de piqûre maximale (tmax a)
15 mm
Diamètre extérieur maximal de départ (Da max)
45 mm
Plus petit diamètre d'alésage axial (Da min)
10 mm
ISO_SSC
HORN105225$95N$$$$$
Katalog_SSC
105225
Largeur de coupe (w)
2.5 mm
Rayon d‘angles (r)
0.1 mm
Longueur totale (l5)
40 mm
eshop-note-us
These inserts are rotated at 17? and are only compatible with holders featuring the same angle. The holders are marked with a note. Face grooving to the full width and full depth can only be performed for diameters between 10-40 mm. Do not exceed 40mm if grooving at full width and depth.
| Téléchargements | |
|---|---|
| RA105_1025_2_2_TI25-DXF.DXF | Télécharger |
| RA105_1025_2_2_TI25-STP.STP | Télécharger |
| RA105_1025_2_2_TI25-ISO.XML | Télécharger |
| RA105_1025_2_2_TI25-DIN.XML | Télécharger |
| Télécharger tous les fichiers | |
